B508 Snap-ApartTM: PitchSticksTM Metric Plus






Features:

  • The immediate solution to a variety of problems caused by fine-pitch parts.
  • Good for many IC's, connectors, displays, or anything with a fine pitch.

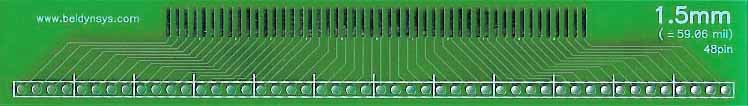

Snaps Apart into ten pieces like these:



Twenty 48-pad pitch patterns front/back, on ten Snap-ApartTM elements.


Patterns:

2 each, 2mm pad pitch (approx. 78.74 mil)
2 each, 70 mil pad pitch (exactly 1.778mm)
2 each, 1.5mm pad pitch (approx. 59.06 mil)
2 each, 1mm pad pitch (approx. 39.37 mil)
2 each, .8mm pad pitch (approx. 31.50 mil)
2 each, 30 mil pad pitch (exactly .762mm)
2 each, .75mm pad pitch (approx. 29.53 mil)
2 each, .65mm pad pitch (approx. 25.59 mil)
2 each, .5mm pad pitch (approx. 19.69 mil)
2 each, .4mm pad pitch (approx. 15.75 mil)
Note: larger elements can be made into smaller ones with a sharp pair of cutters.


Where to Buy



Click Part # below to buy from Mouser:

853-B508




If unavailable through distributors, buy direct here:

Direct
