B506 Snap-ApartTM: USB 1394 RJ11/12/45 DB9

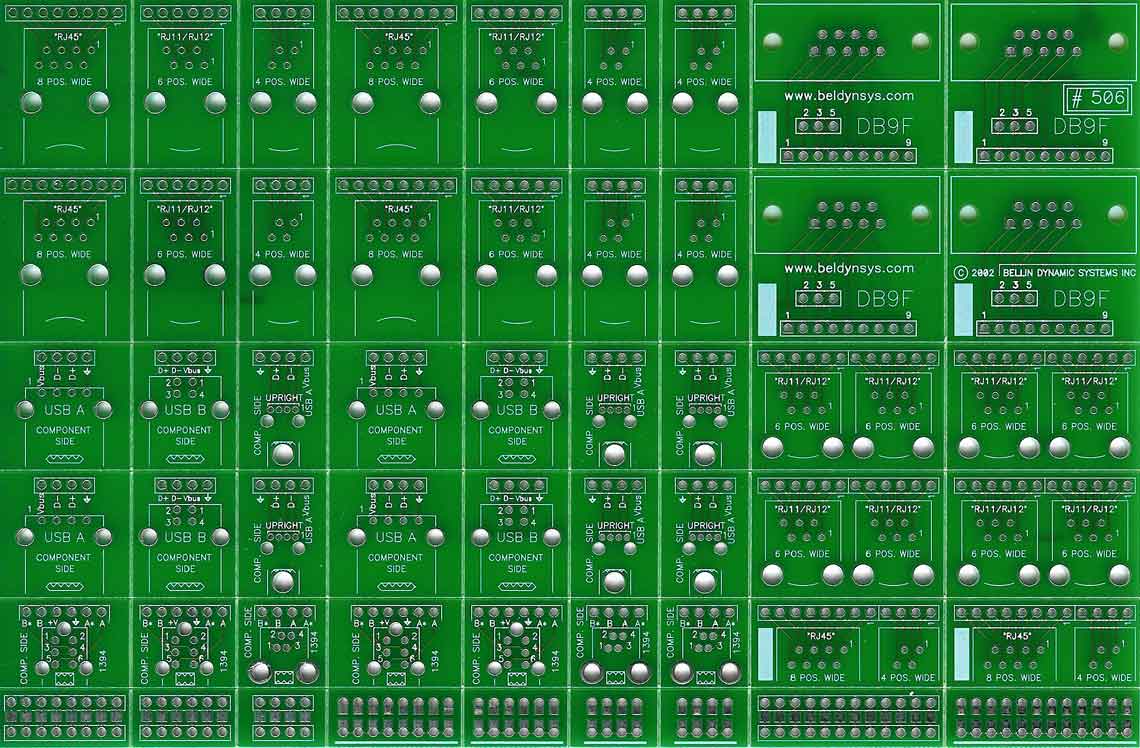

Patterns:

  • 4 Position Mod. Jack, 6 Position Mod. Jack (fits RJ11 and RJ12), 8 Position Mod. Jack (Fits RJ45)

  • DB9F, DB9M (back side of DB9F), USB A Connector, USB A Connector (Upright), USB B Connector

  • 1394 4 Pin Connector, 1394 6 Pin Connector, 805 Component Termination Pads

  • 805 Component Test Pads

Compatible:

 Type Example Part Number

 DB9M Tyco/Amp 747840-4
 DB9F Tyco/Amp 747844-4
 MODULAR 4 PIN Molex 15-43-8544
 MODULAR 6 PIN Molex 15-43-8566 (RJ11, RJ12)
 MODULAR 8 PIN Molex 15-43-8588 (RJ45)
 USB A Molex 87531-0018
 USB A UPRIGHT Molex 89485-0000
 USB B Molex 67068-0001
 1394 4 PIN Molex 54030-0490
 1394 6 PIN Molex 53460-0611
